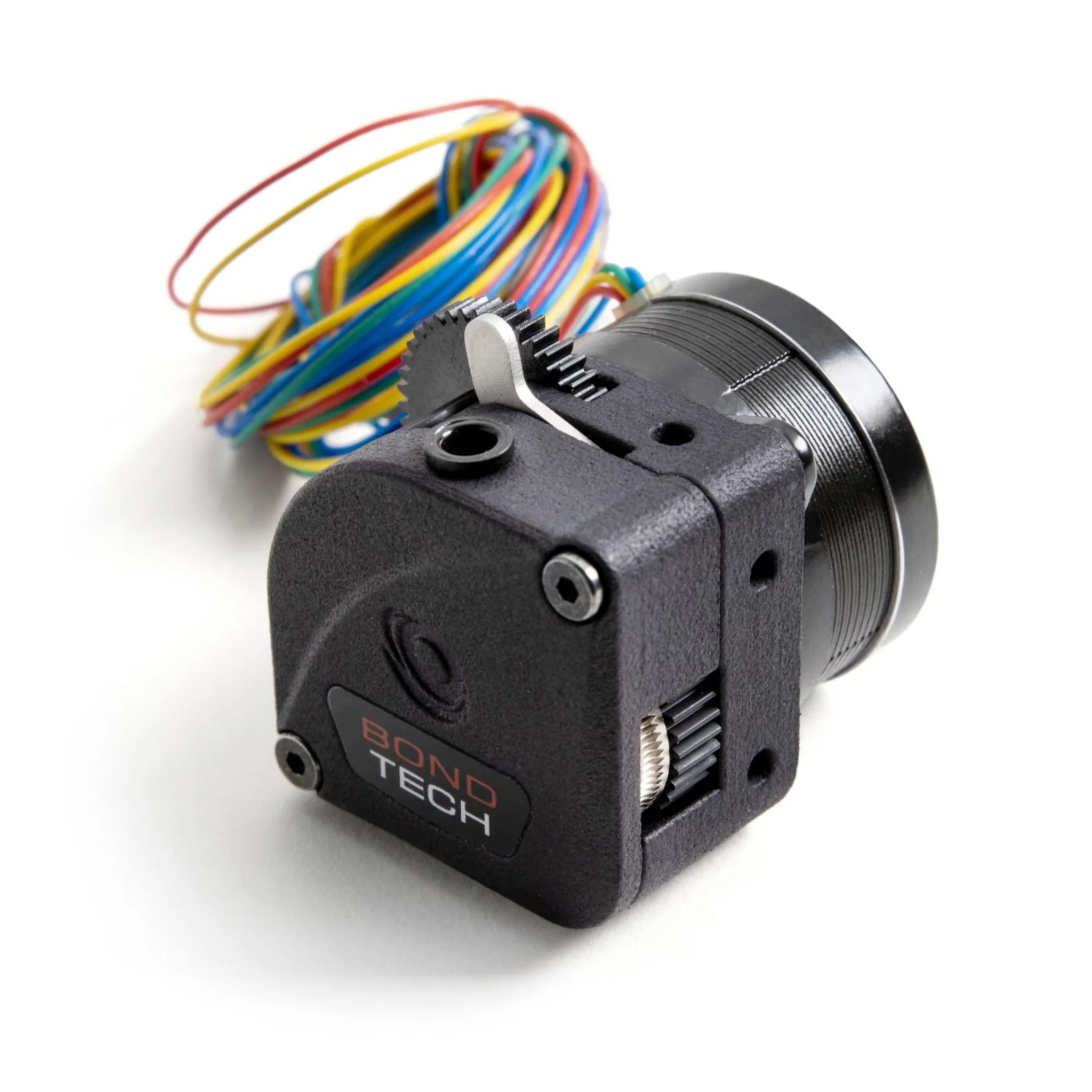

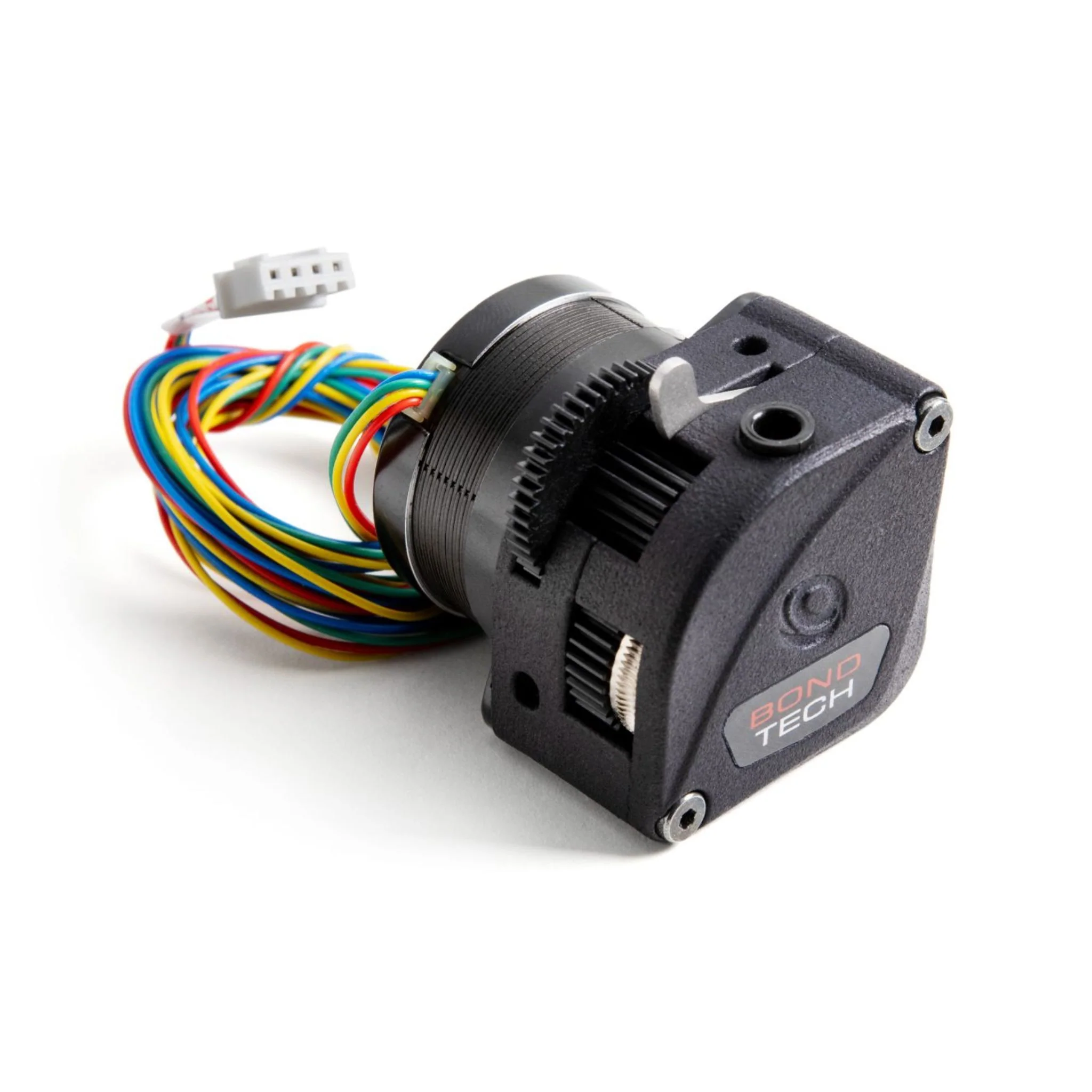

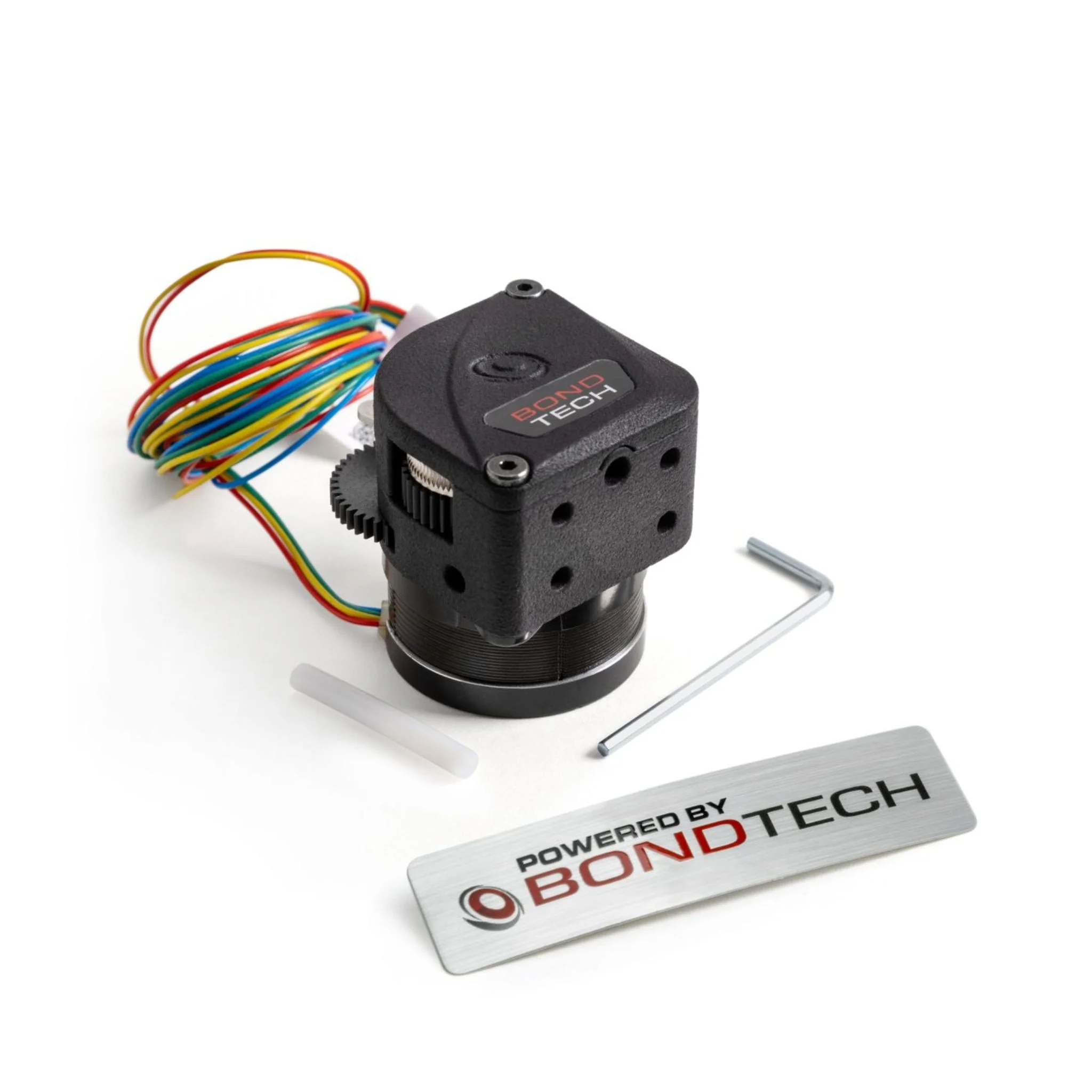

Bondtech LGX Lite eXtruder

Larger Drive Gears

Bondtech's Dual Drive Technology in the LGX Lite eXtruder allows you to unlock more precise, reliable, and faster 3D printing. With larger drive gears that provide increased filament grip & a filament pre-tension lever for repeated results on rigid and flexible materials, the LGX Lite redefines your 3D printing experience.

3D Printed Housing using PA12 GF

The housing parts are professionally printed with a glass-filled polyamide 12 for maximum strength, precision, and higher temperature resistance.

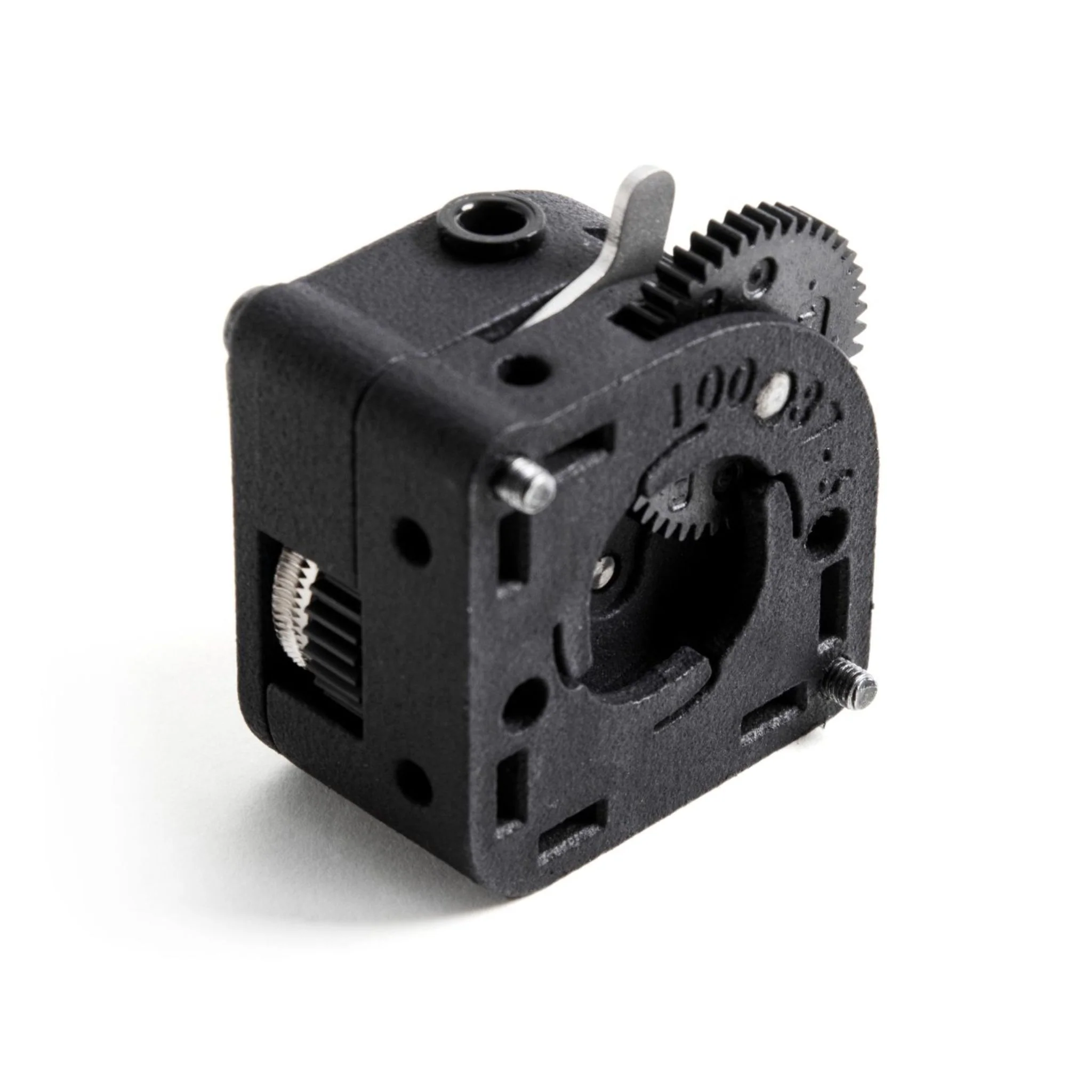

LGX Lite V2 Improvements

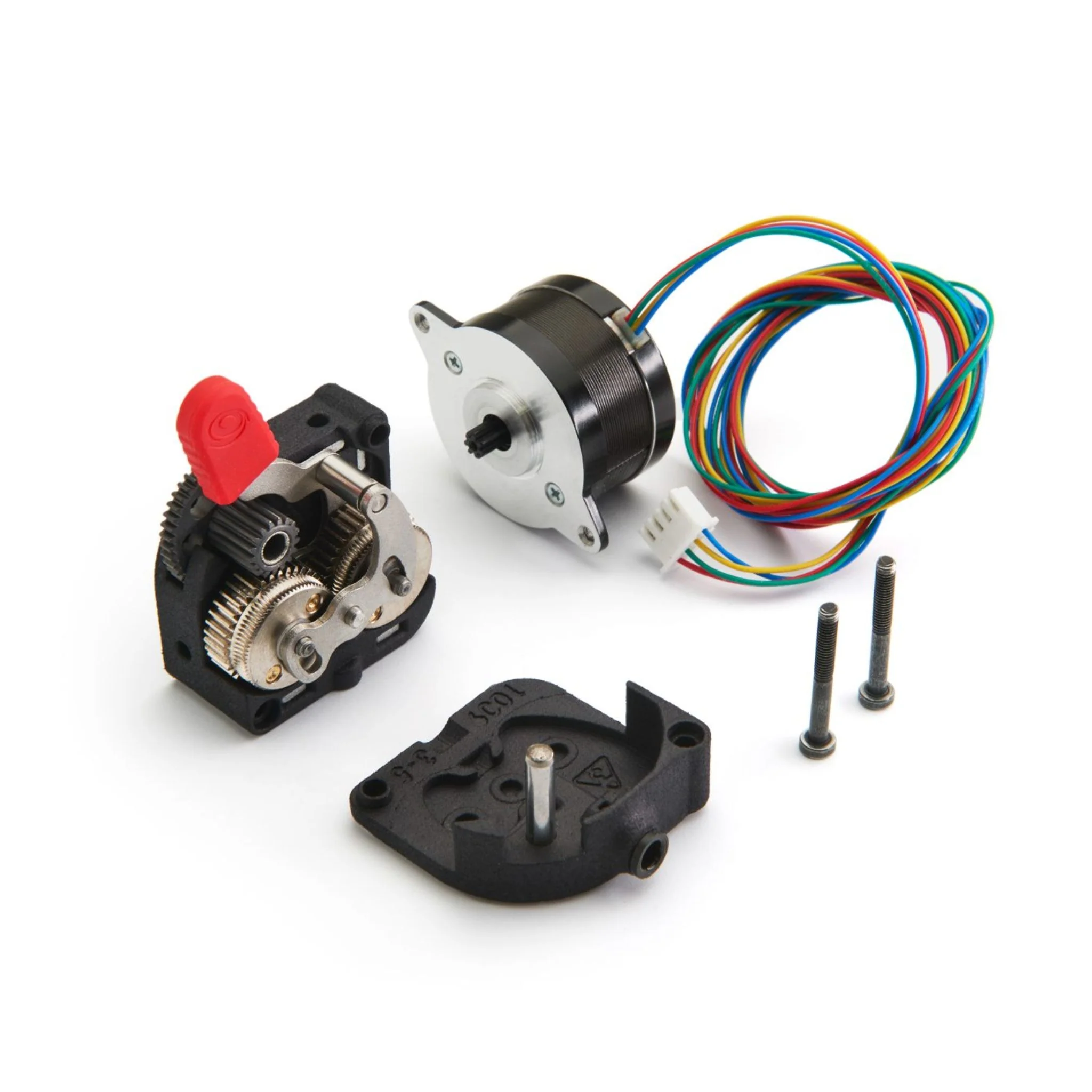

The LGX Lite V2 contains many improvements over the original version including tighter tolerances, a sturdier 2 part housing design, precise stepper motor centering, an increased resistance to heat, and plastic gears. With plastic gears, the heat produced by the stepper motor of the LGX Lite V2 doesn't spread through the drive train to the drive wheels and filament. This is critical when working with filaments with low glass transition temperatures. The extruder is also a lot lighter than the main LGX eXtruder and comes in at 150 g.

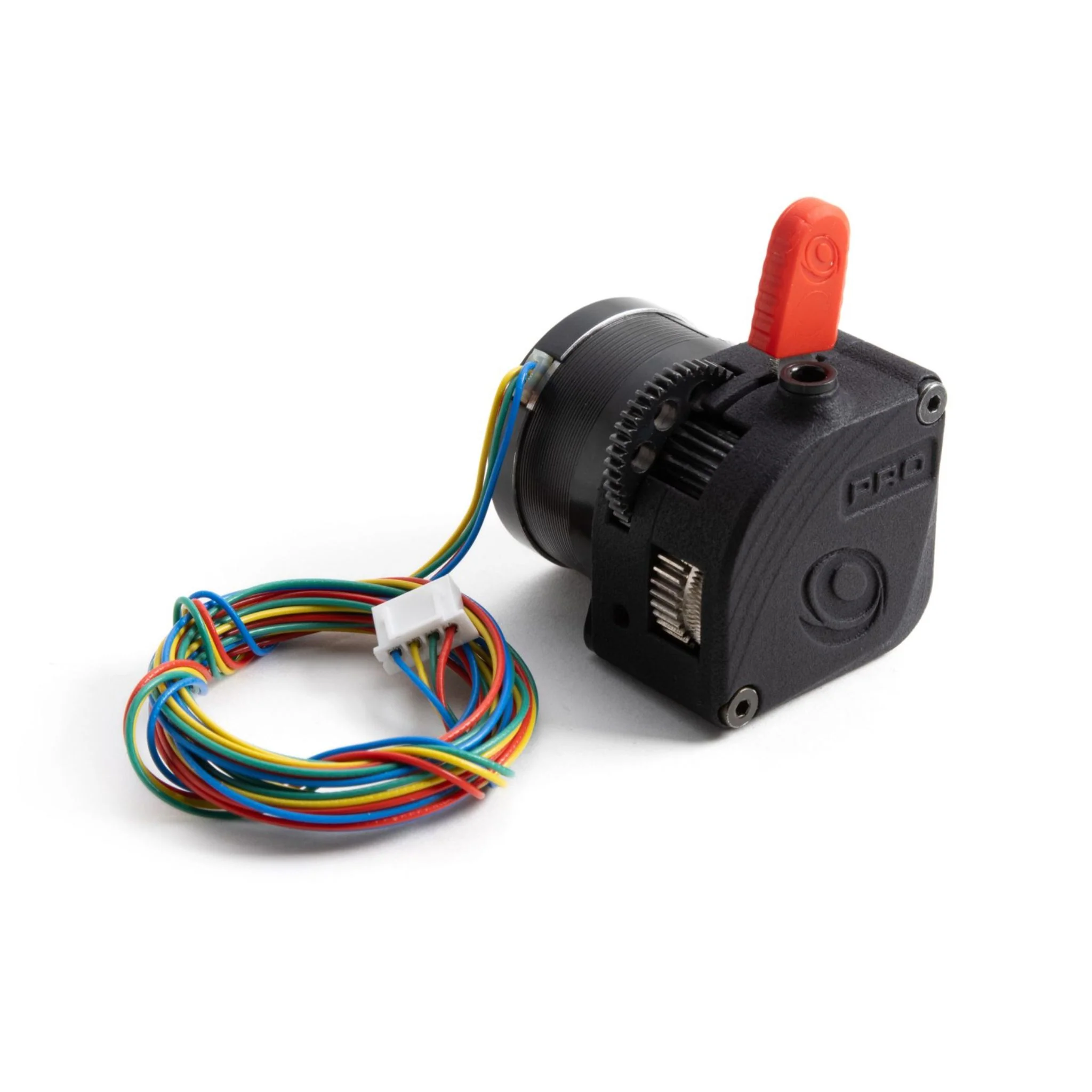

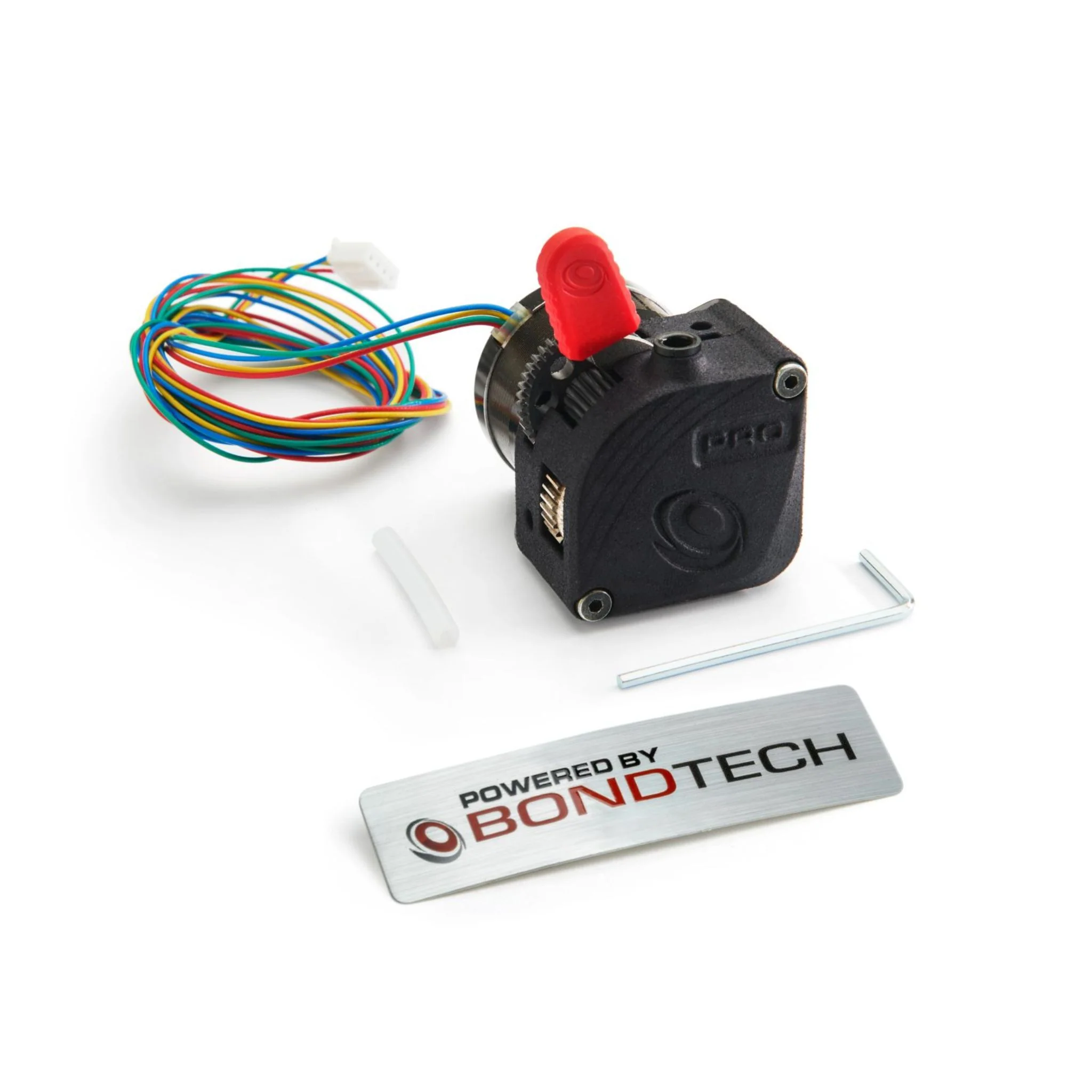

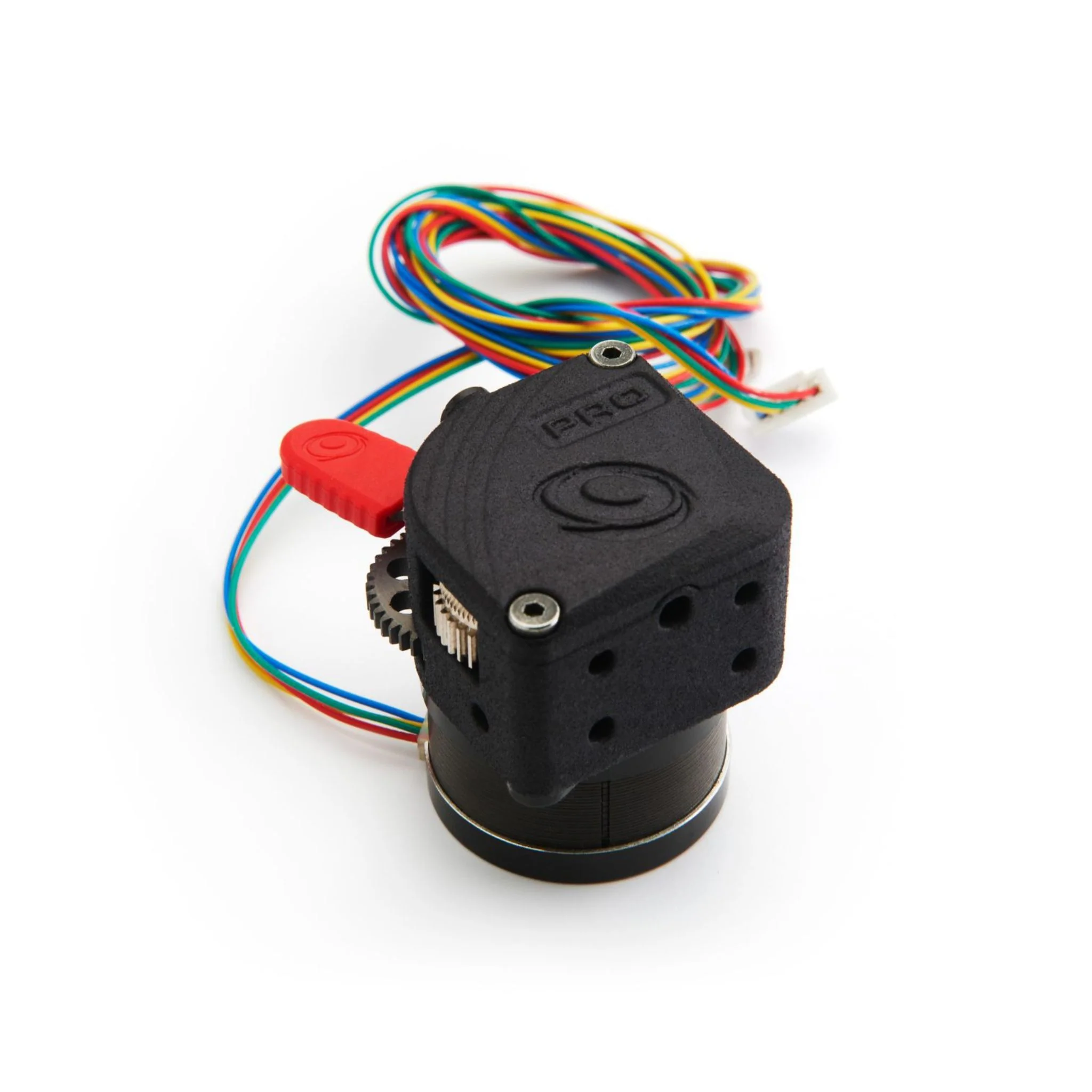

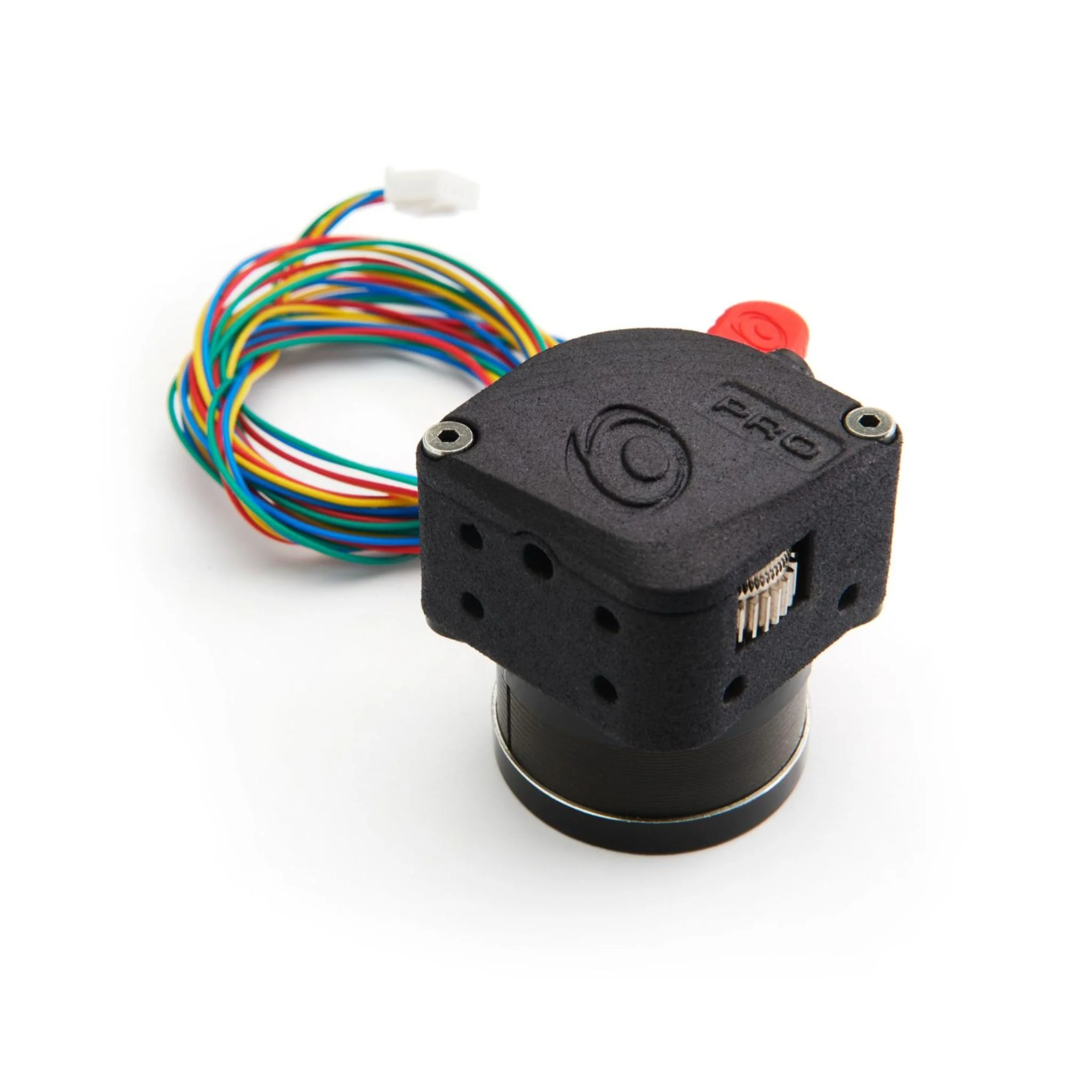

LGX Lite PRO For Industrial Applications

In addition to the standard benefits of the LGX Lite V2, the LGX PRO comes with a steel drive train, stronger motor with more torque, higher gearing ratio, and V2 style housing build. With a steel drive train, the LGX Lite PRO can work at higher temperatures for longer while using more torque. It also comes with more filament pretension positions for finer adjustments to filament.

Additional Features and Benefits

• Drive wheels’ maintenance windows for easy cleaning
• Compact, light & centered filament path for increased performance and compatibility
• Multiple mounting hole patterns for an easy and flexible setup

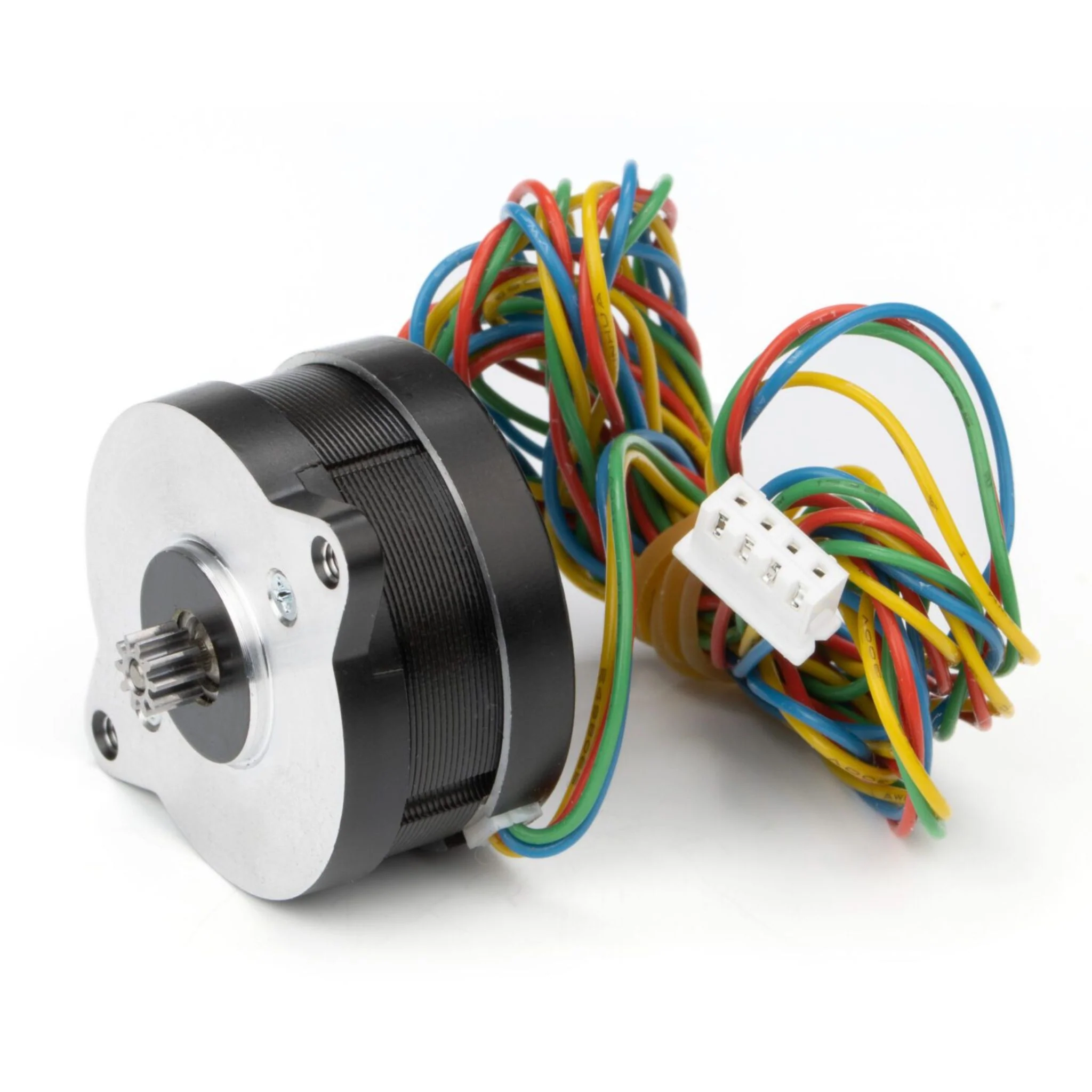

• Compatible with Nema14 round stepper motors

Important Information

• This extruder does not allow a mount plate between the motor and the extruder.
• This extruder is for 1.75 mm filament only.

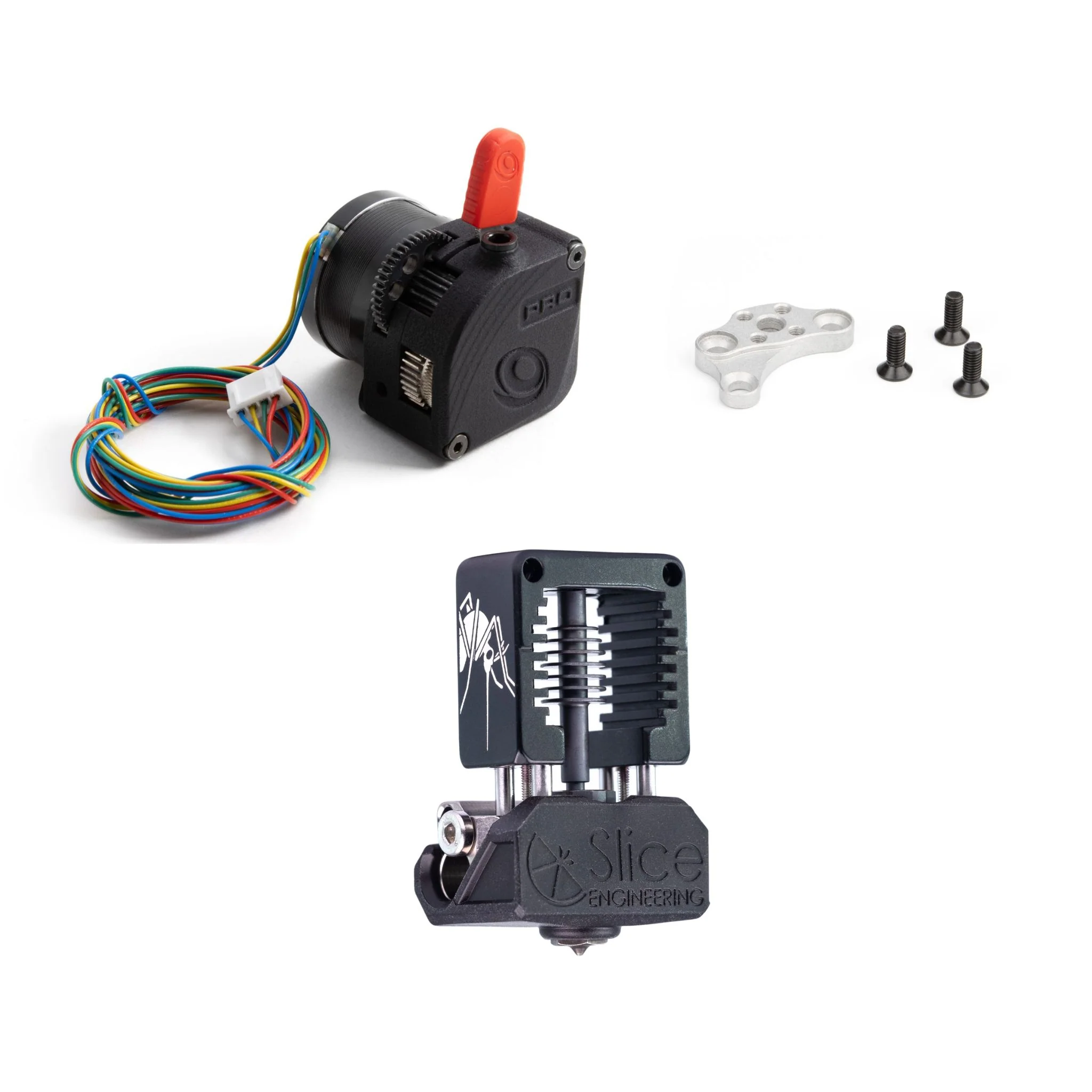

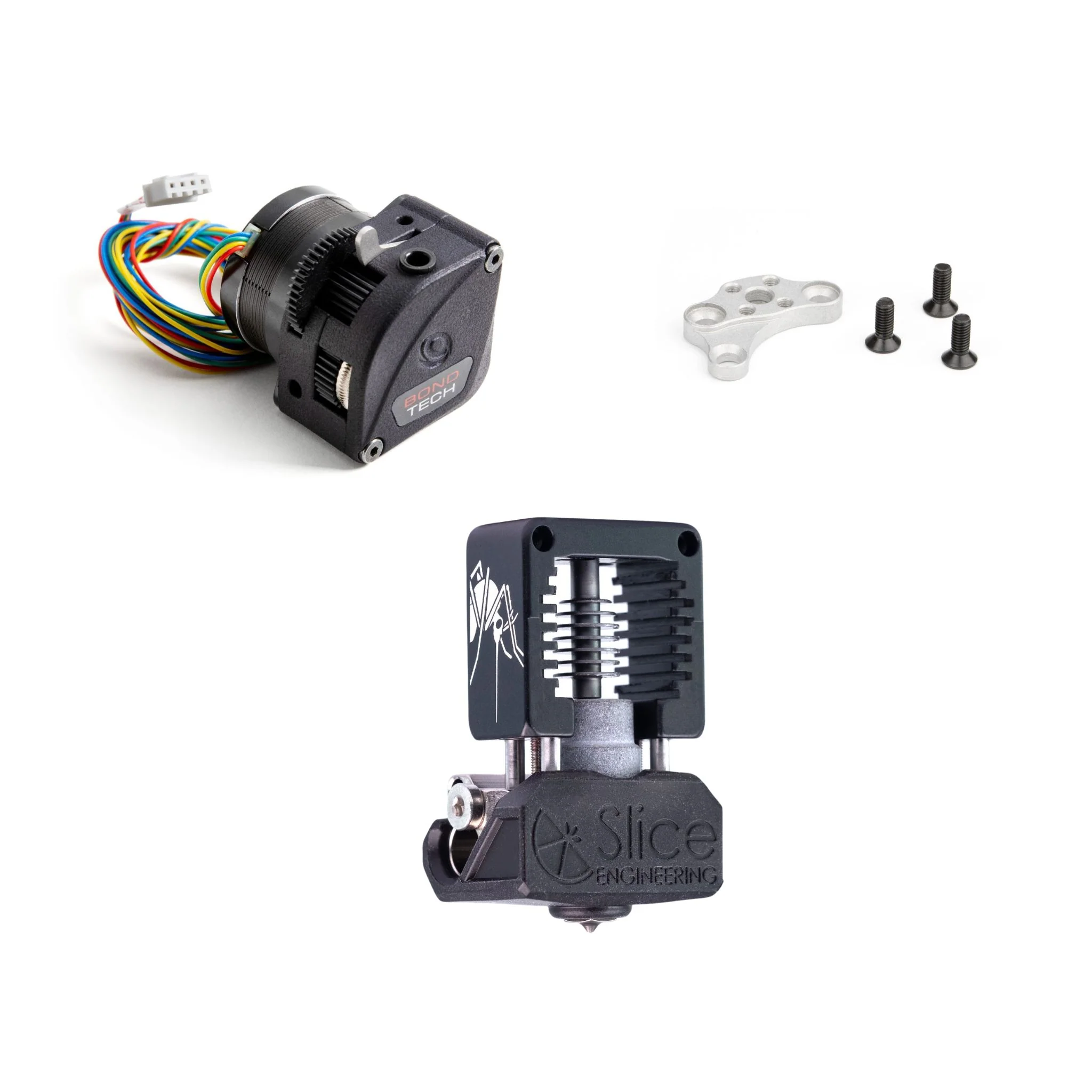

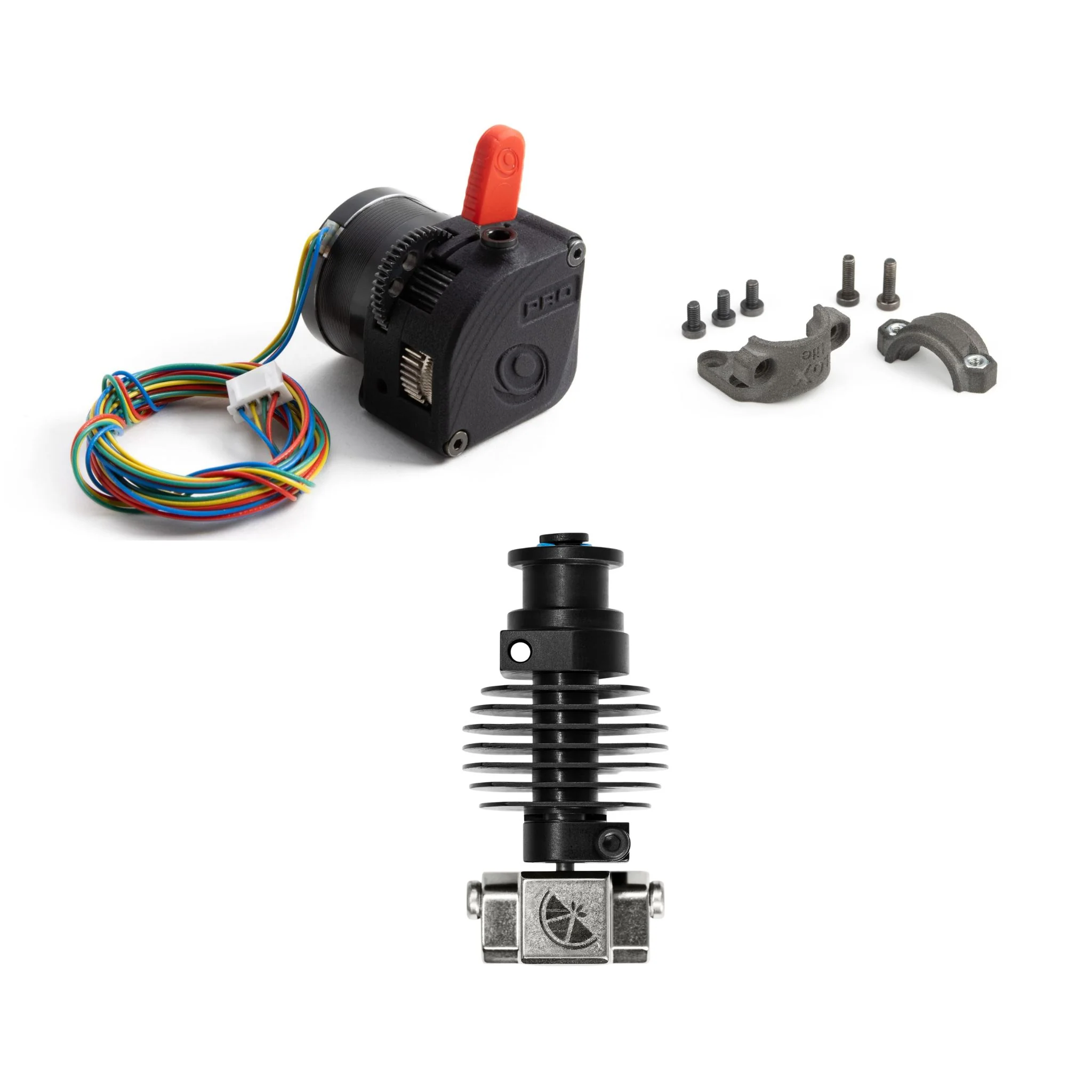

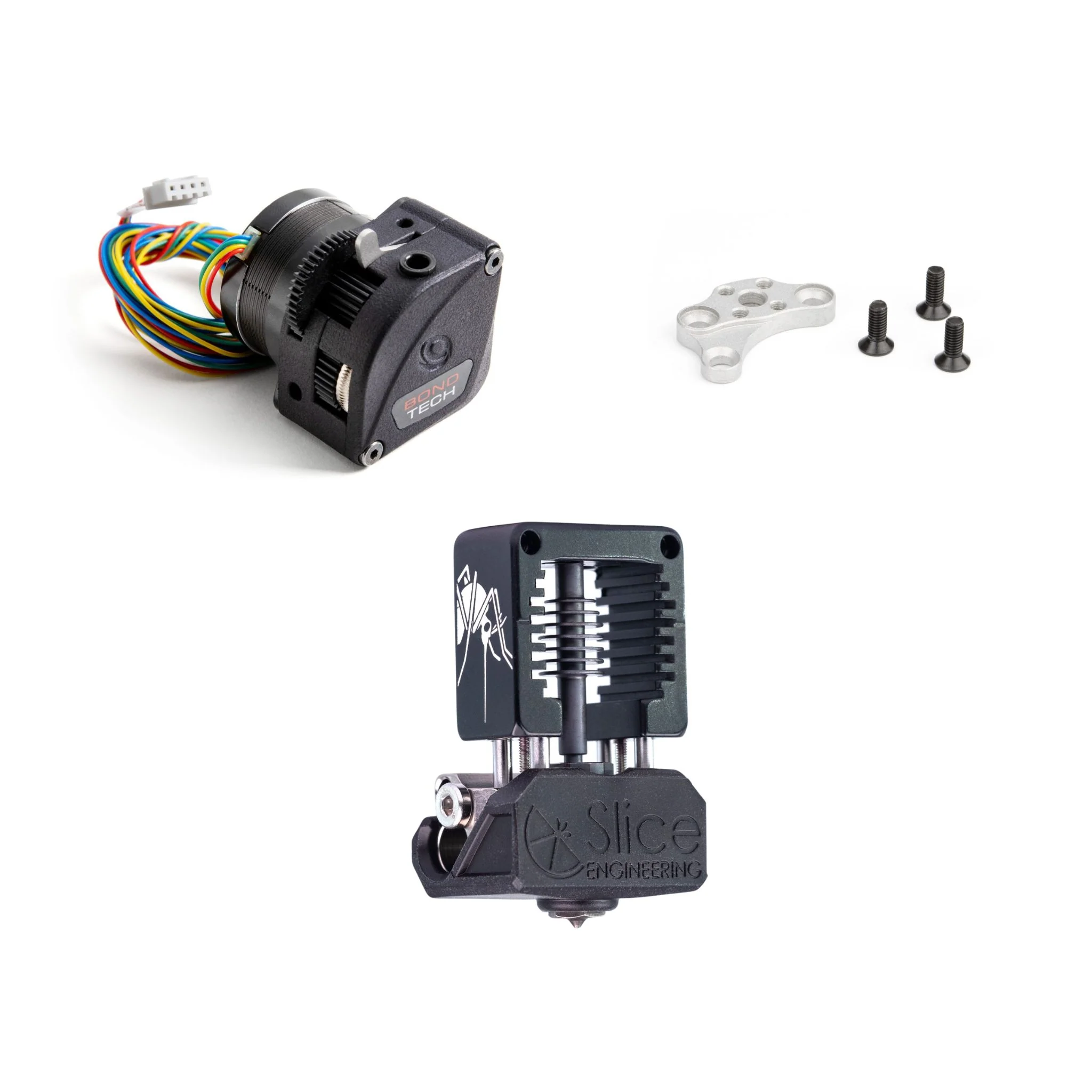

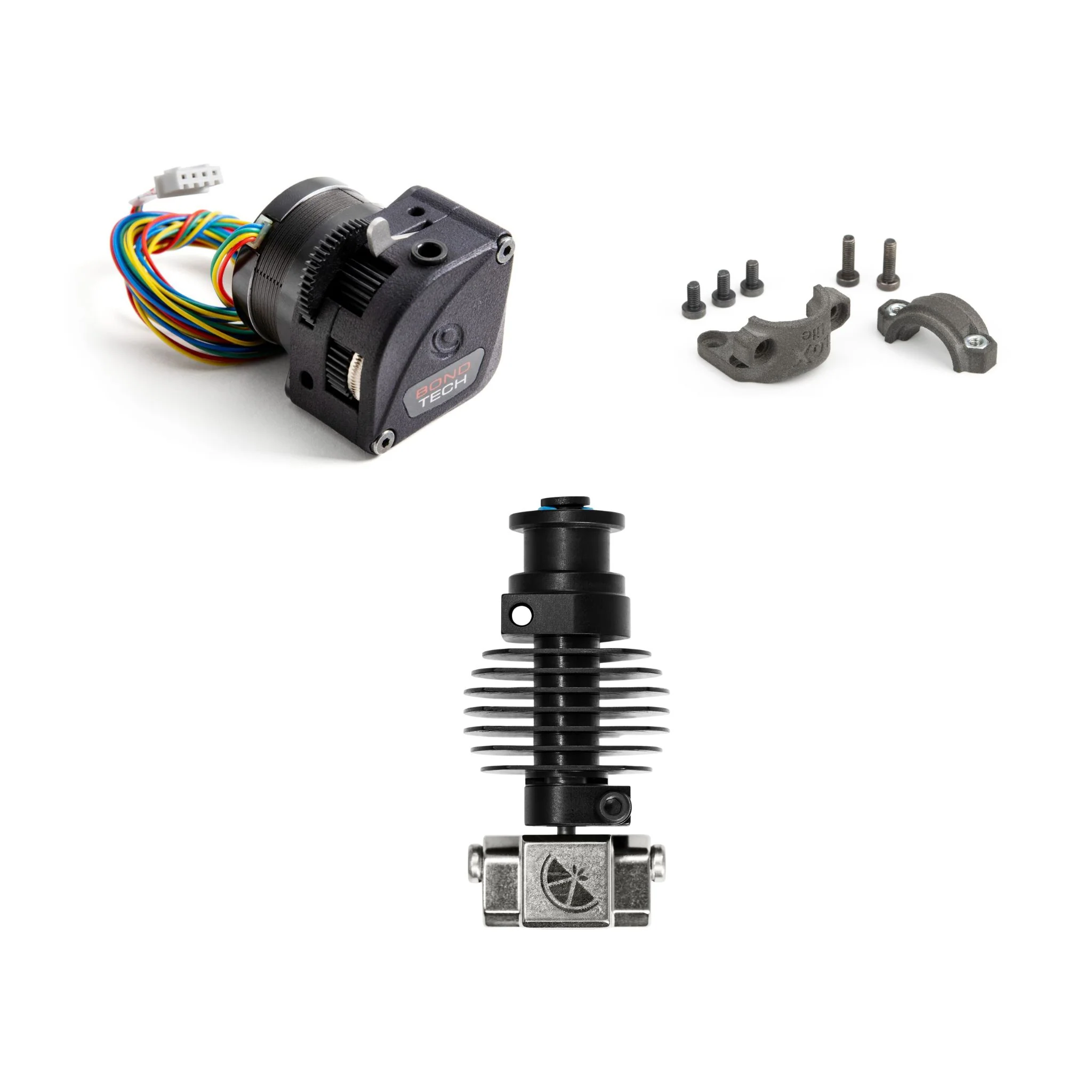

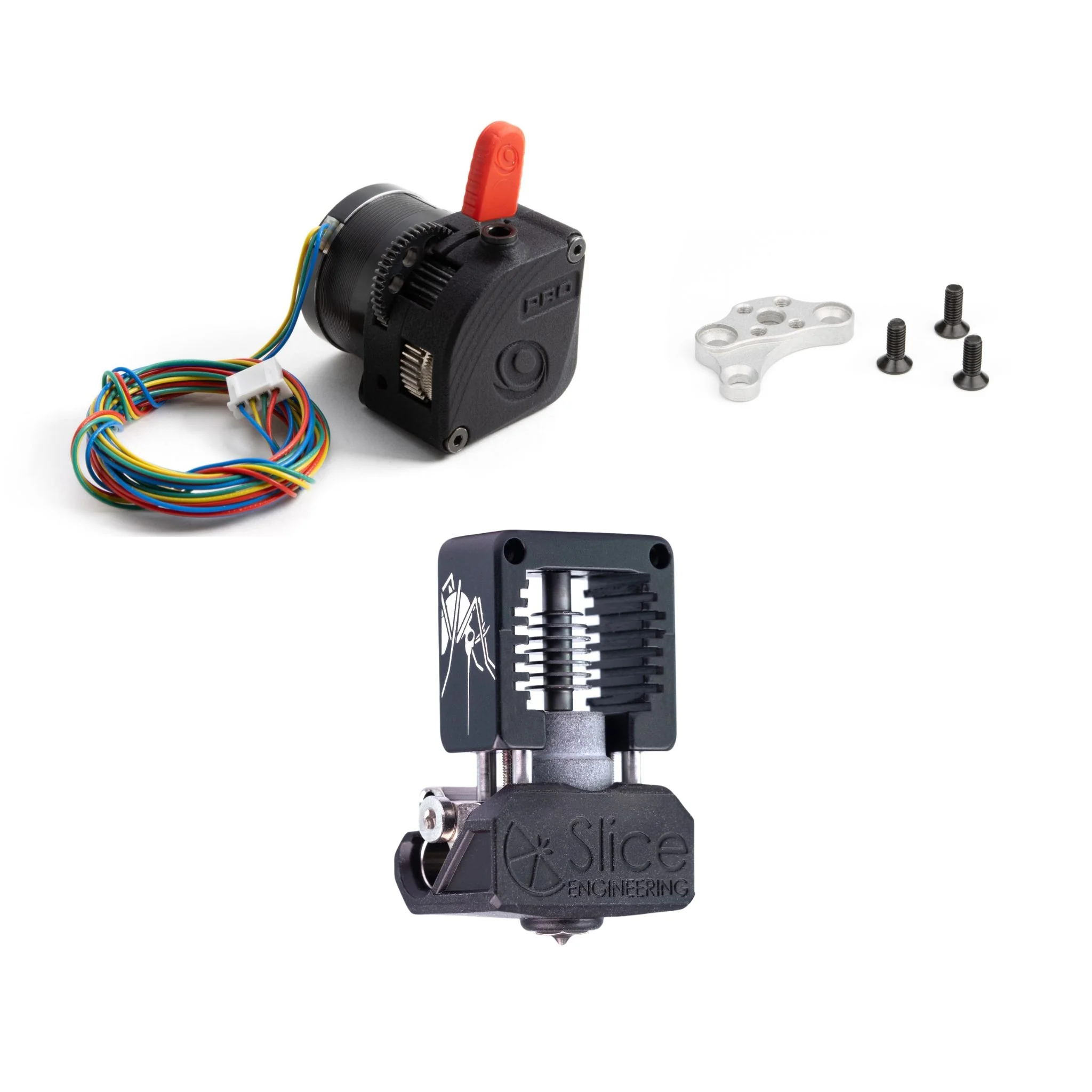

• Looking to use the LGX Lite with a Mosquito^® or Copperhead^® Hotend? Click here for the LGX Lite Mount.
