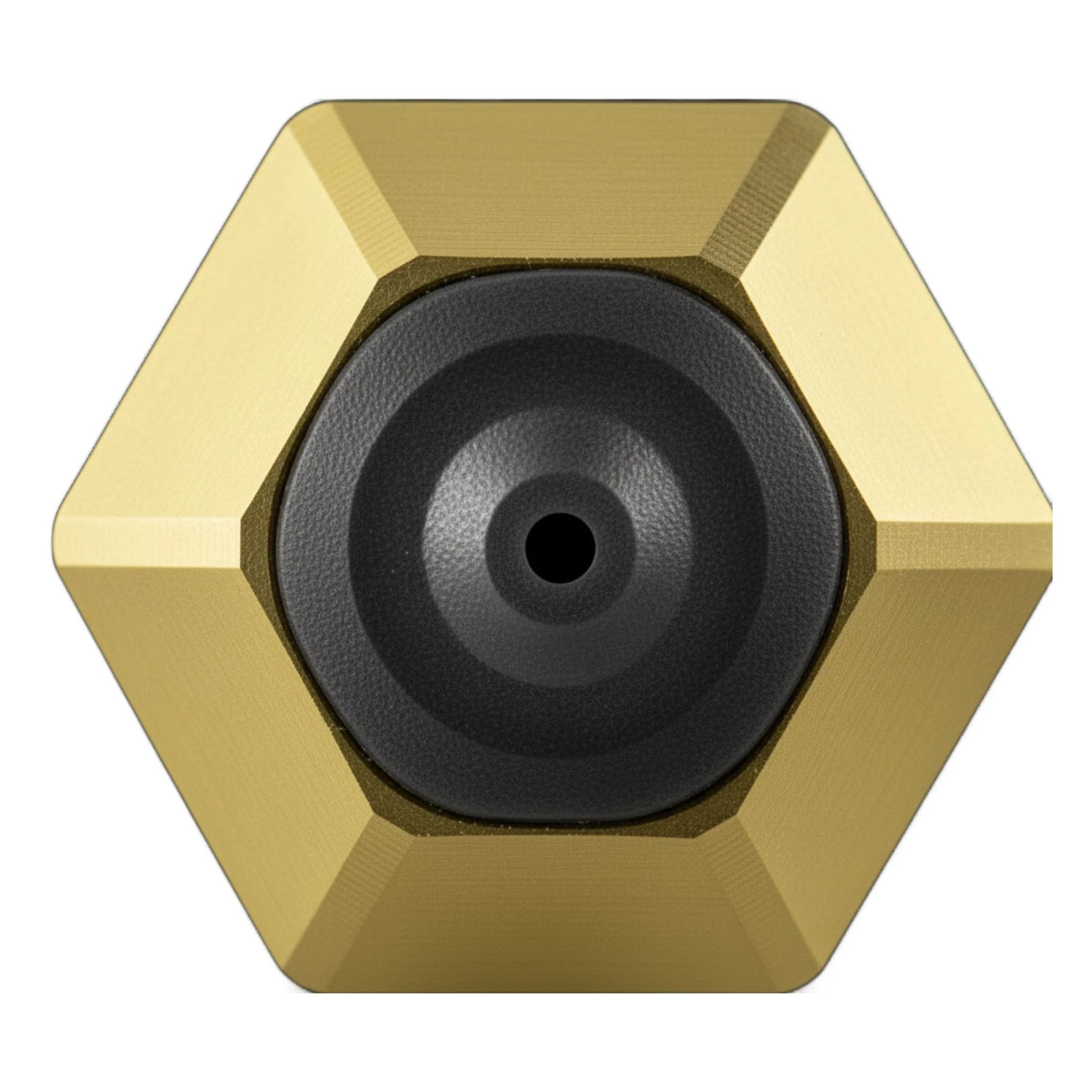

DIANOZ Pro Nozzle

The DIANOZ Pro Nozzle is a professional diamond-reinforced 3D printer nozzle designed for users who demand maximum durability, thermal performance, and print consistency. By combining a stainless steel body with a polycrystalline diamond (PCD) tip and diamond-reinforced filament channel, the DIANOZ Pro nozzle eliminates the traditional trade-off between wear resistance and heat conductivity.

Unlike brass, steel, or ruby nozzles, the DIANOZ Pro Nozzle has very high thermal conductivity and high wear resistance. It’s 3X harder than ruby (corundum), has 4X better thermal conductivity than brass, and has a heat-resistance up to 550° C, allowing it to maintain dimensional stability at high temperatures. If you’re trying to print abrasive filaments at high-temperatures, this is the nozzle for you.

The nozzle is one of the most stressed and wear-prone components in a 3D printer, directly affecting print quality, temperature accuracy, and surface finish. The DIANOZ Pro Nozzle solves these limitations with a diamond-reinforced construction that delivers exceptional wear resistance, superior heat transfer, and consistently smooth extrusion even under demanding conditions.

Features

• Diamond-reinforced filament channel
• Diamond tip
• Wear-resistant coating
• Special ironing surface
• Stainless steel body

Technical Specifications

• Substrate Temperature Rating: 550°C
• Hex: 6.1 mm (~1/4")
• Thread Length: 7.5 mm
• Overall Length: 12.5 mm
• Warranty: Lifetime guarantee
